Description

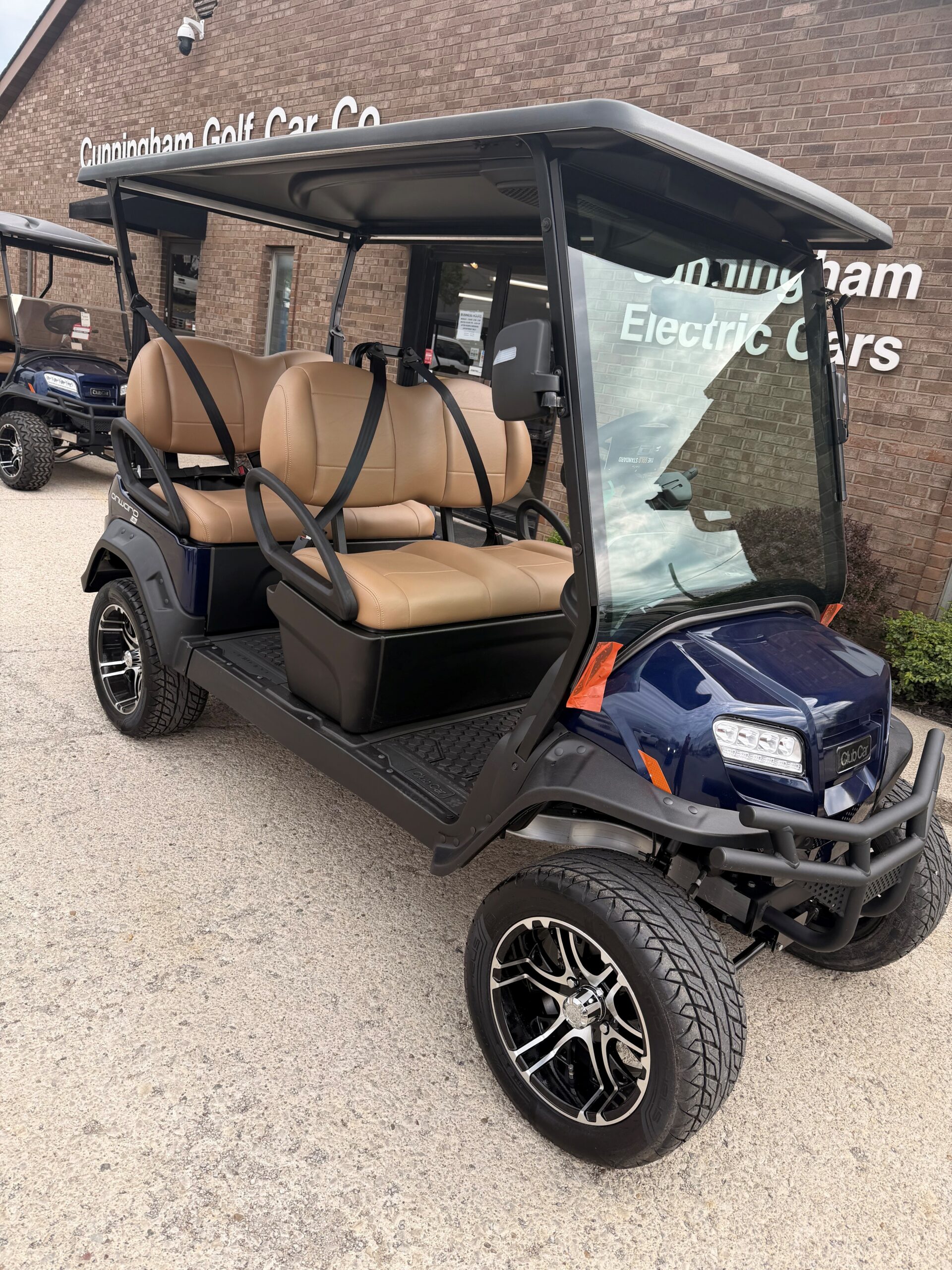

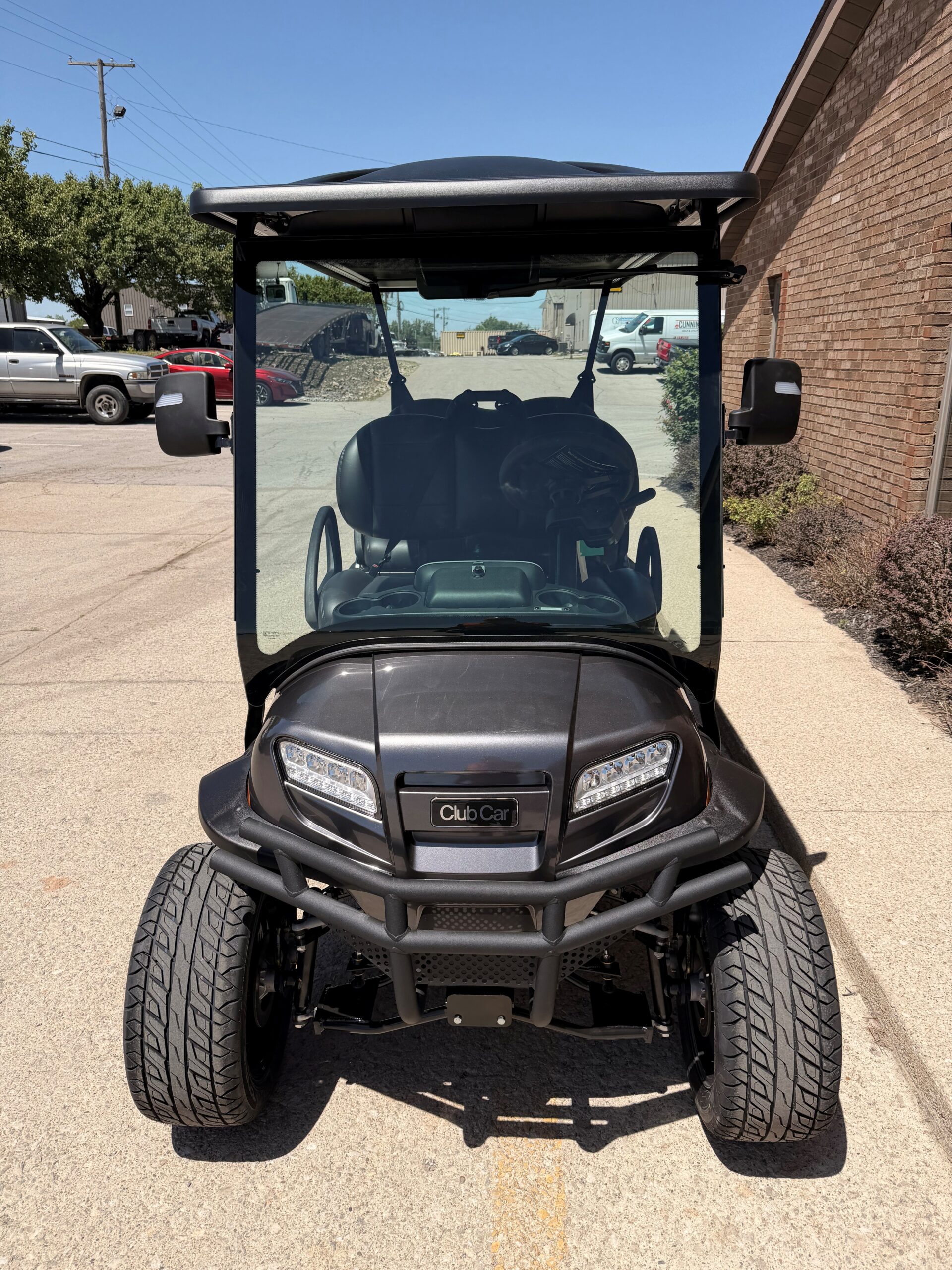

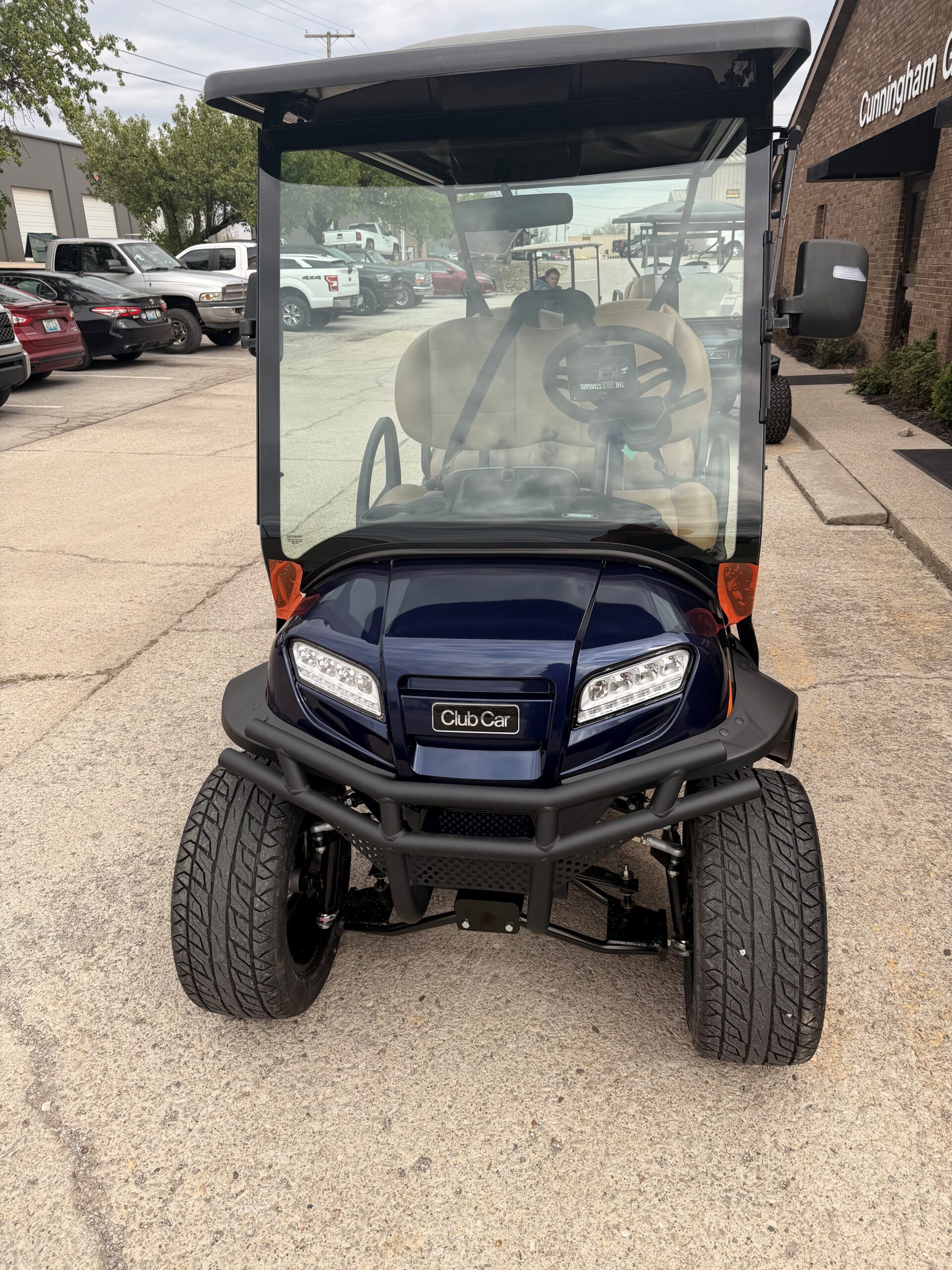

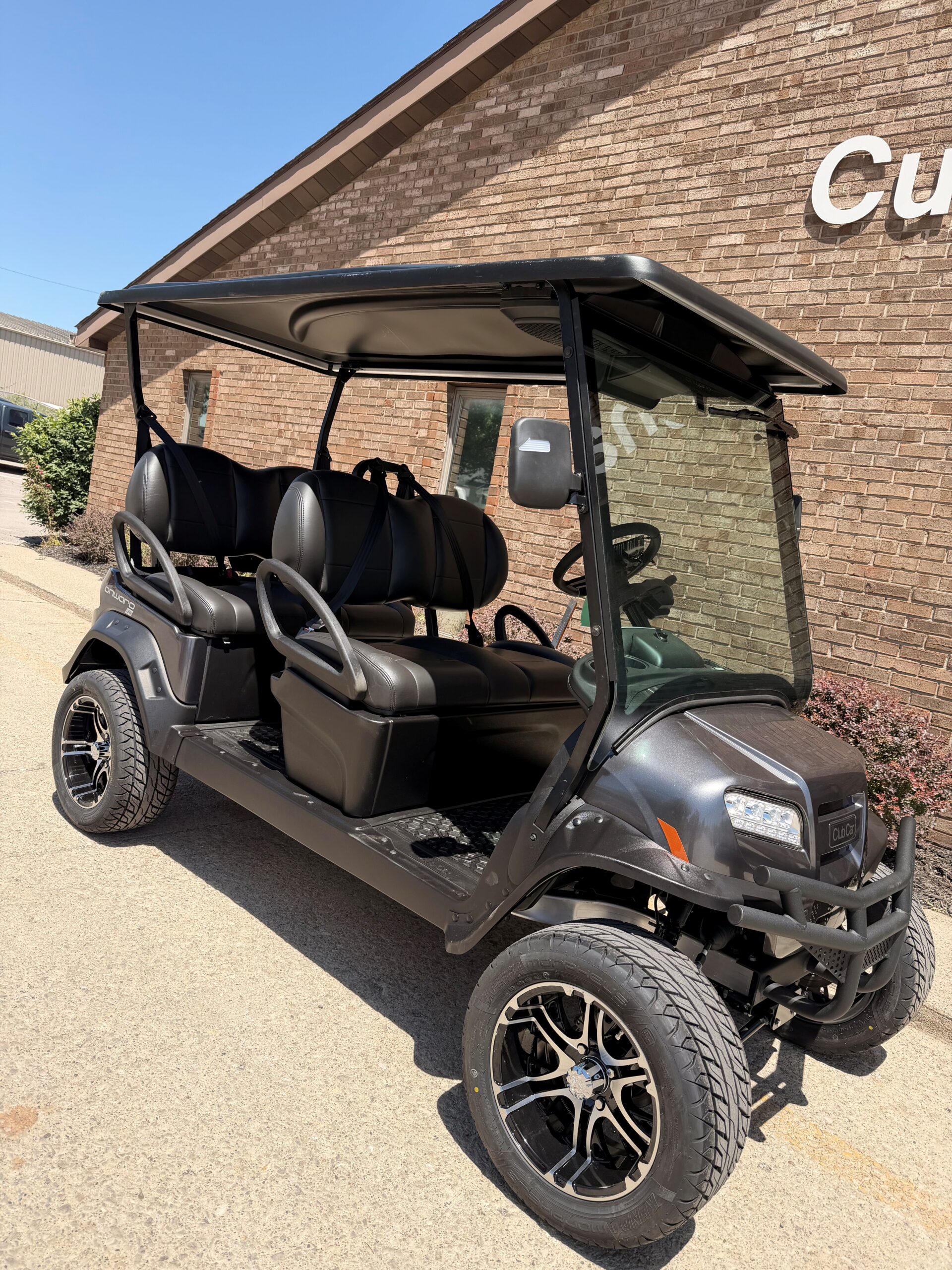

2027 Club Car® Onward® 4 Forward LSV
The new street legal Onward 4 Forward LSV delivers premium comfort and a smooth, quiet ride with SportDrive™ suspension and two rows of spacious forward-facing seating. Inside, Apple CarPlay and Android Auto connect through an overhead entertainment system, complemented by multiple charging options and smart rear cargo storage — all designed for easy neighborhood driving and backed by industry-leading warranty coverage.

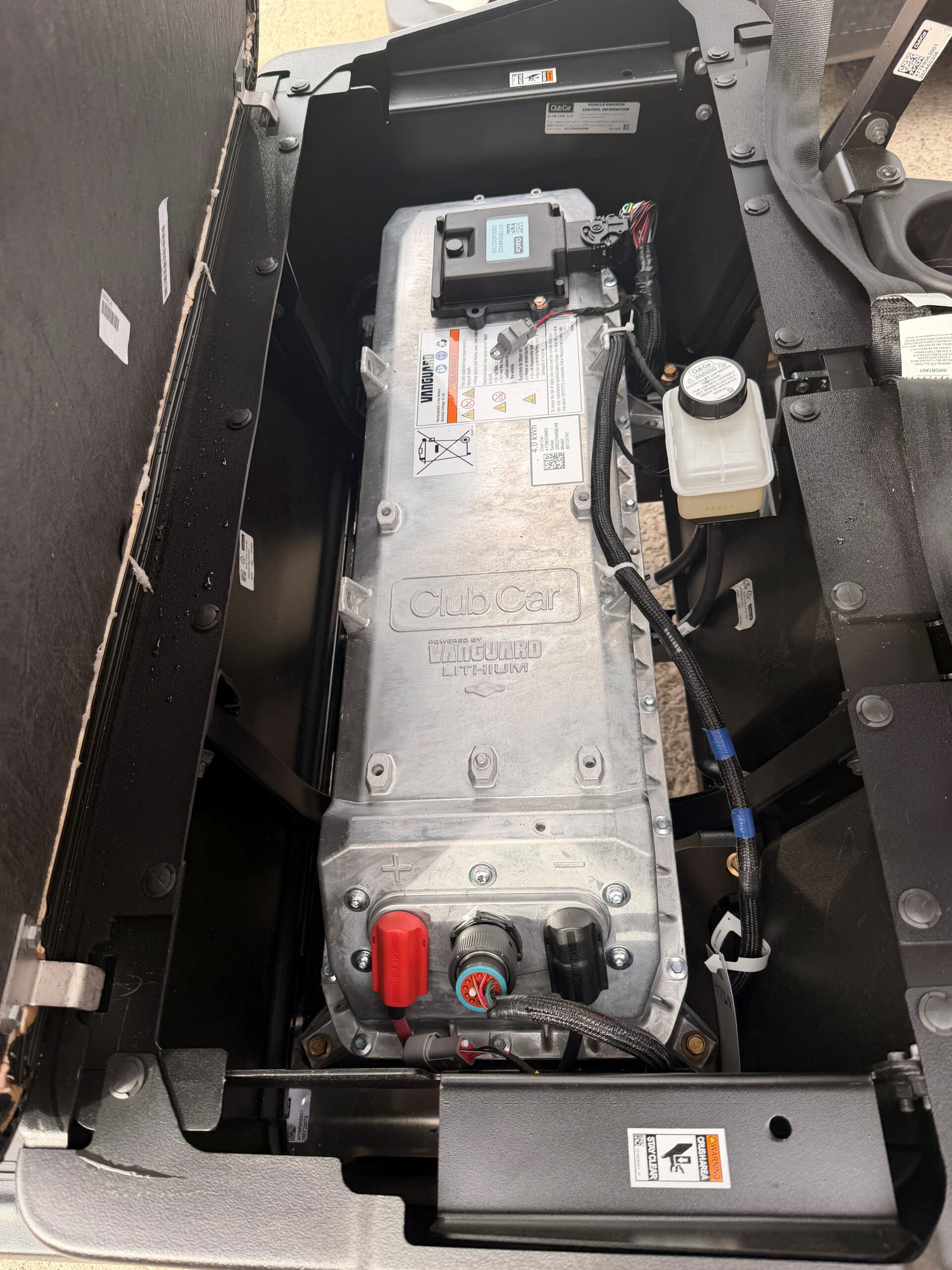

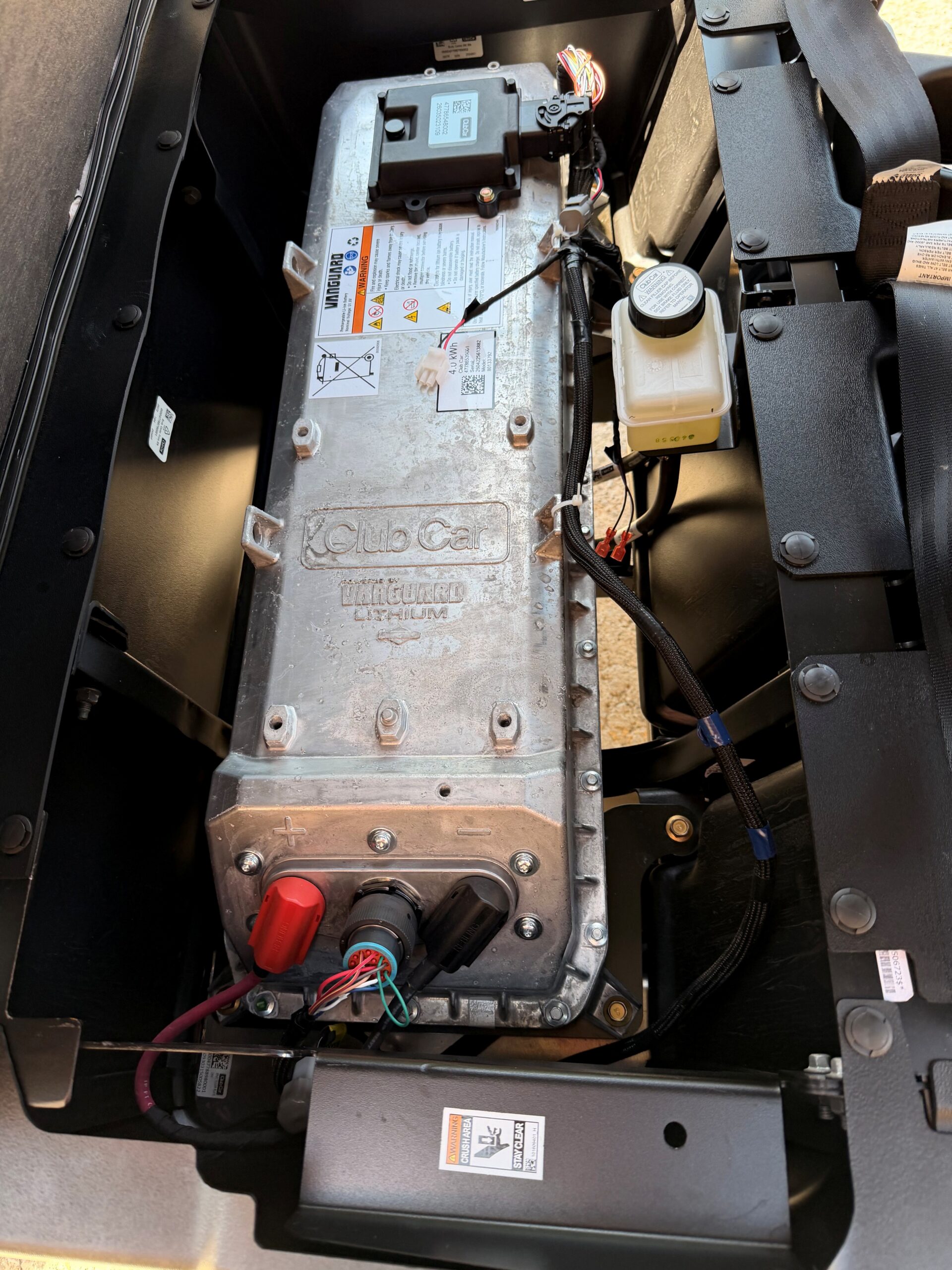

Onward 4 Forward LSV delivers an estimated range up to 30 miles with a fully-charged 4.0 kWh lithium-ion battery
The Onward LSV is built with safety at the forefront, meeting not only the U.S. Federal Safety Standard FMVSS 500, but also the more rigorous automotive SAE J2358 Standard. The car features 3-point seatbelts in both rows for secure, full-body restraint. Its reinforced frame enhances rollover protection, while the rear back-up camera improves visibility when reversing. Side mirrors with turn signals improve visibility and communication for street-legal driving. Additionally, the vehicle includes an AVAS (Acoustic Vehicle Alerting System) to help pedestrians hear the LSV when it’s on the road.
FMVSS 500 requires all LSVs to have a registered VIN number, automotive safety windshield glass, safety belts, turn signals, headlamps, brake lights, horn, mirrors, reflex reflectors, a parking brake and a rear view camera. They also must meet state and local laws which can include windshield wipers and warning beacons.

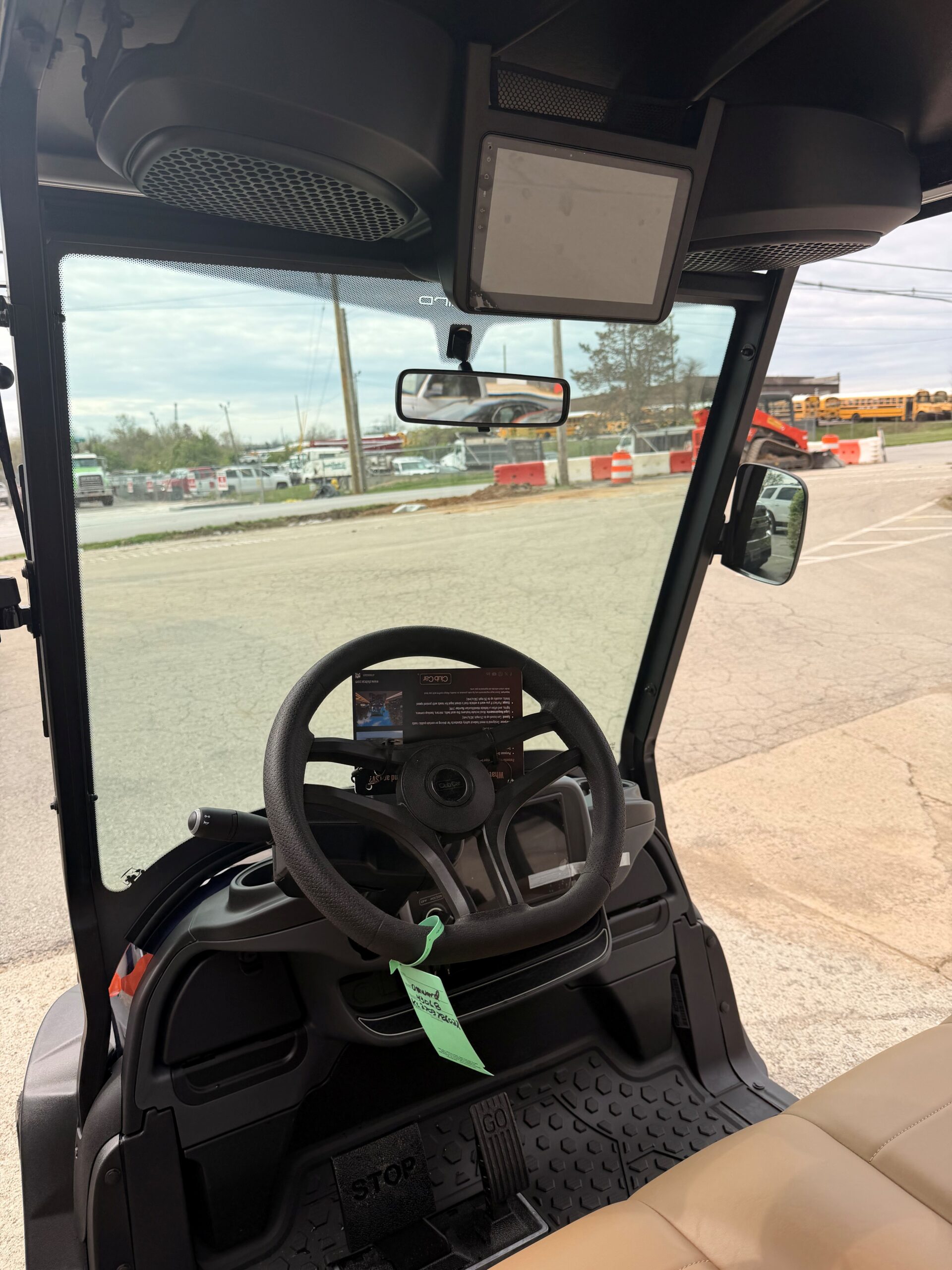

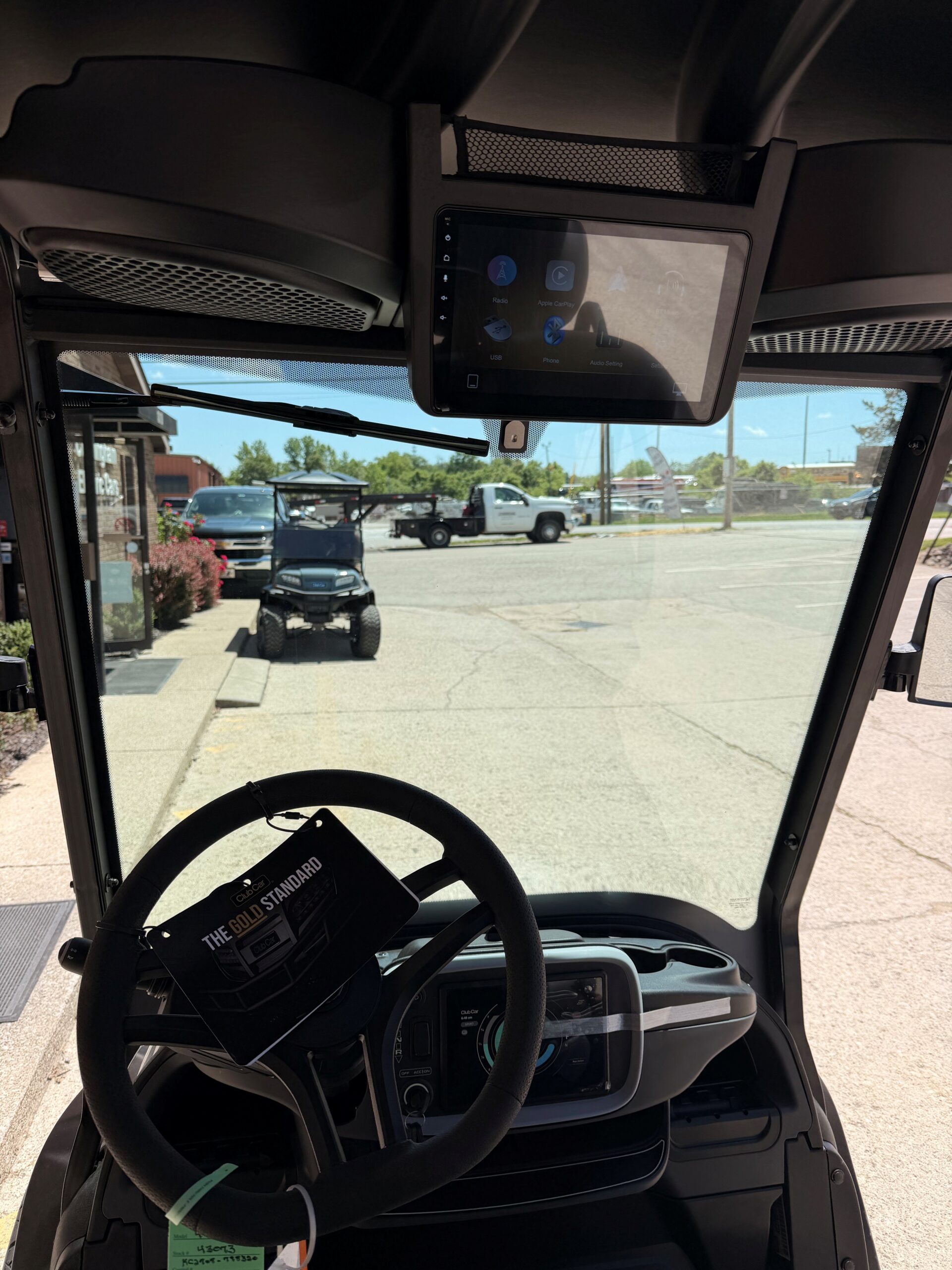

Overhead Entertainment Console
- Compatible with Apple CarPlay® and Android Auto™ (wireless or wired) for easy access to navigation, music, calls, and messages
- Bluetooth® audio streaming
- Hands-free calling
- AM/FM radio,
- Built-in equalizer
Additional Features

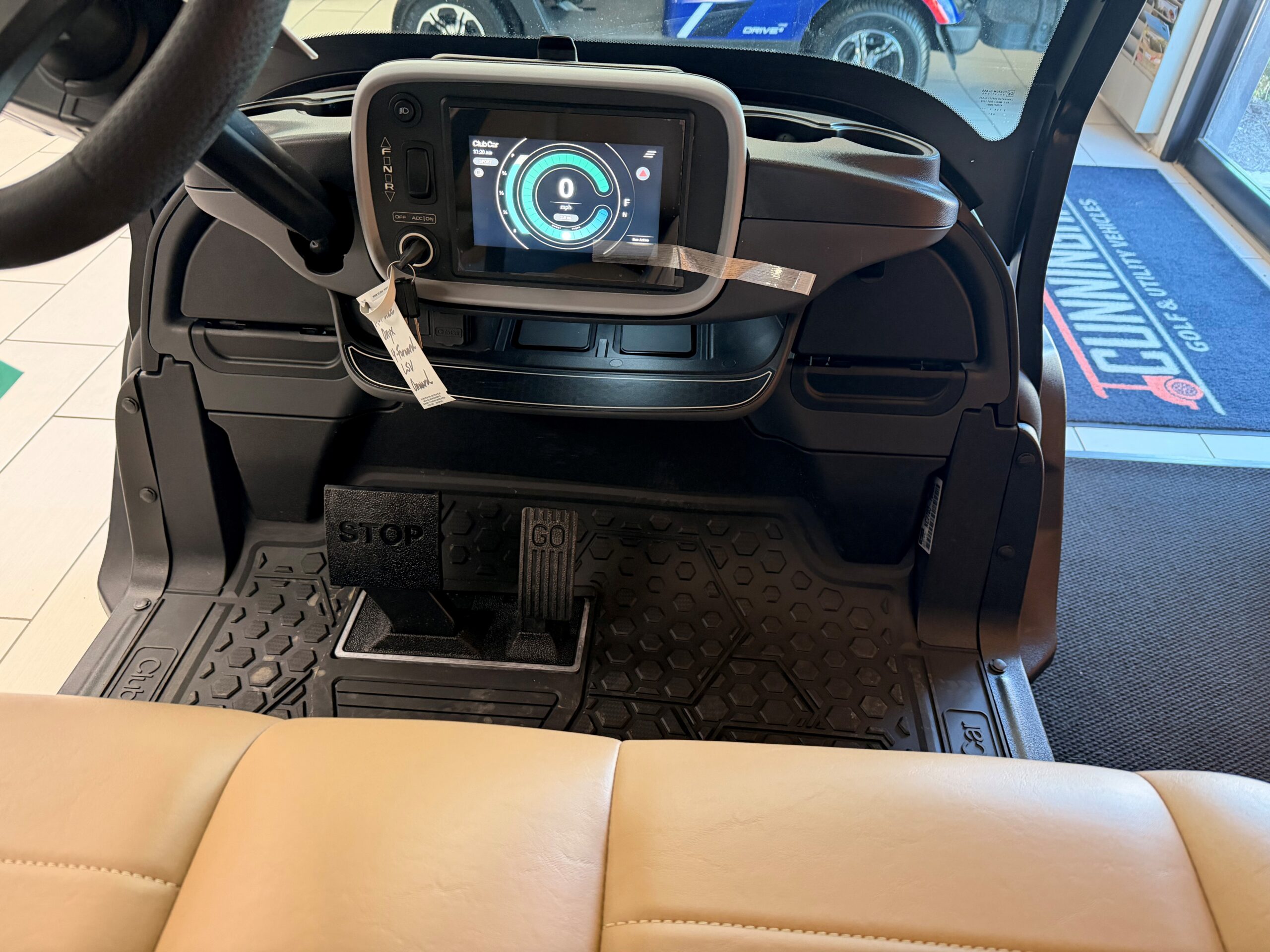

- Delta screen and backup camera
- Auto park brake

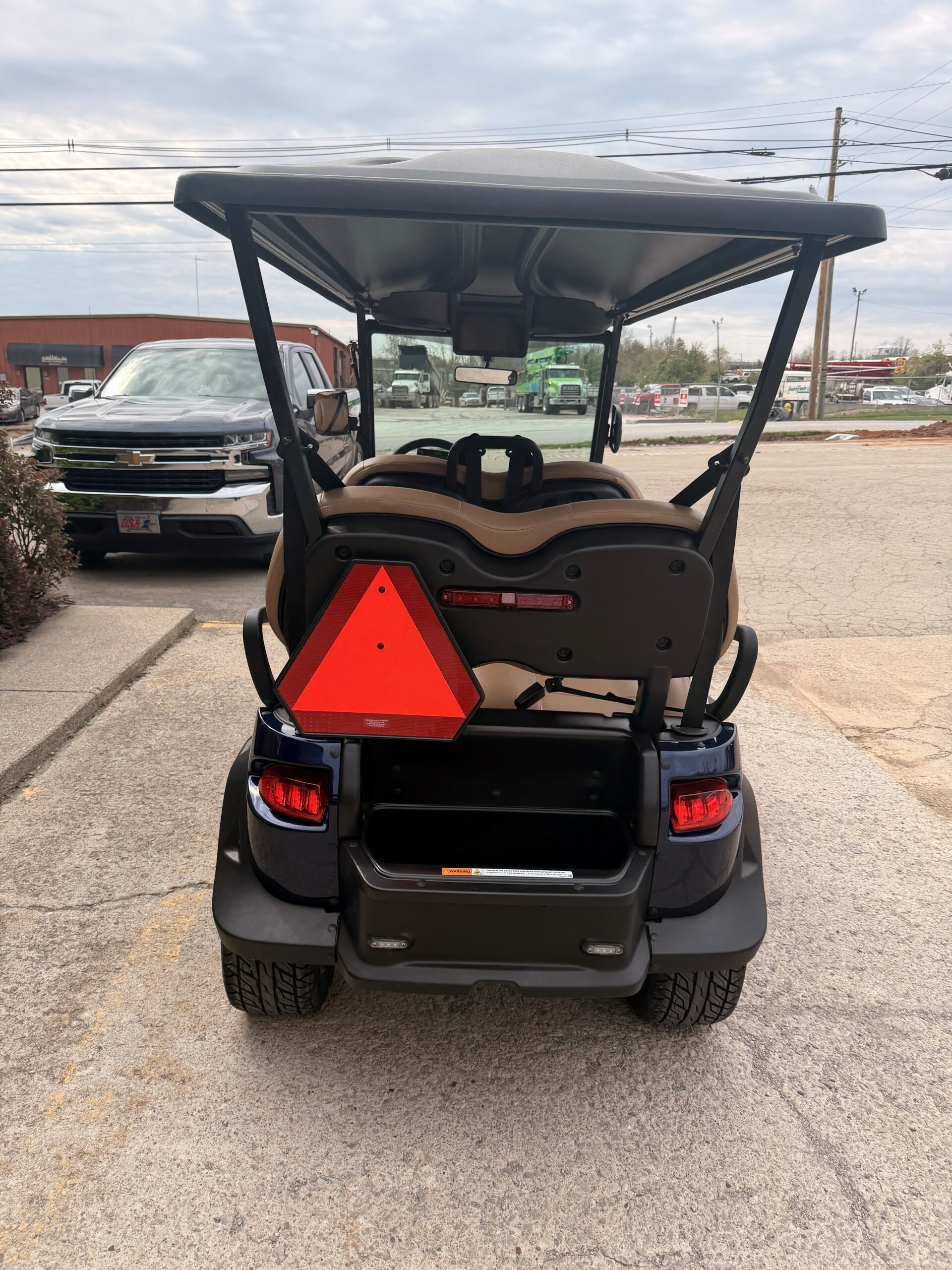

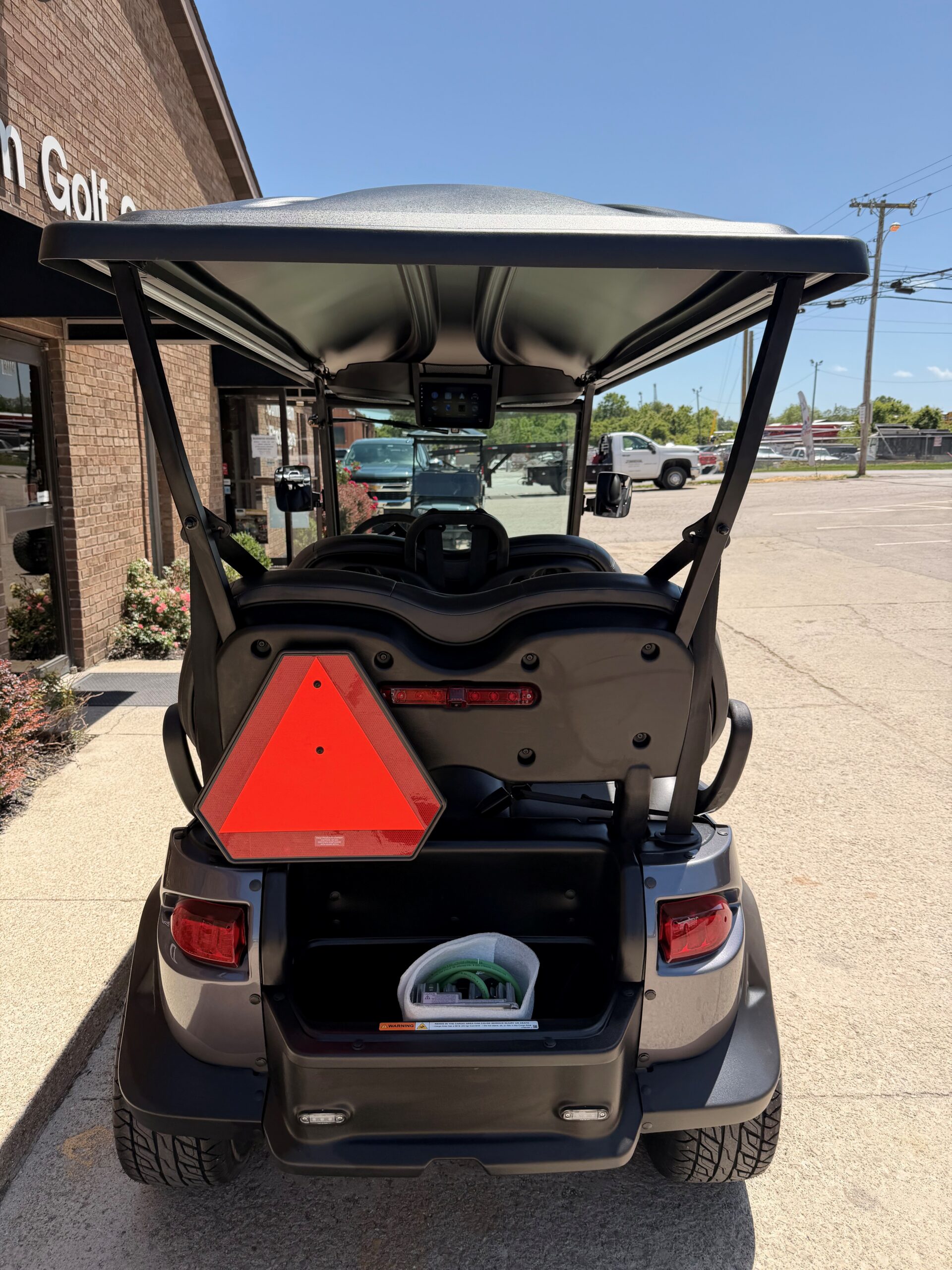

- Additional rear cargo
- Side mirrors with turn signals
- Fender flares and brush guard
- 3-point seatbelts on both front and rear seats
- Reinforced frame for increased occupant rollover protection

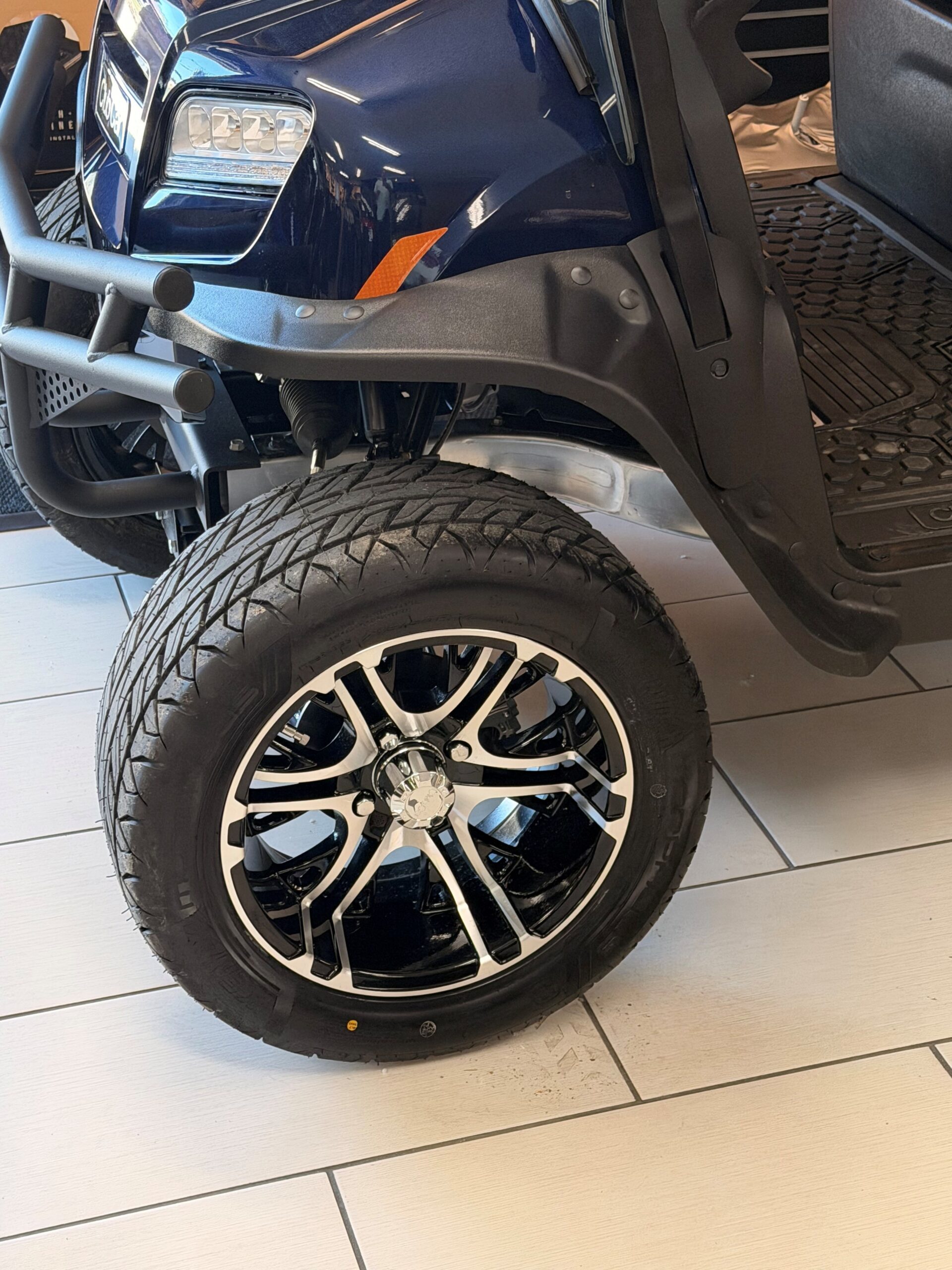

Wheels & Tires
- 14″ Mercury: Gloss Black & Machined Finish
- Morpheus: 215/50R-14 Steel Belted Radial Tires
Premium Model Additional Features
- Dual Wireless Phone Charging Pads
Lockable Side Dash Glove Box Compartments
Dimensions
| All 4 Forward LSV Models | |
| Overall Length | 120 inches |
| Overall Width | 49 inches |
| Topped Height | 79 inches |
| Wheel Base | 83 inches |
| Front Wheel Track | 40 inches |
| Rear Wheel Track | 40 inches |
| Ground Clearance | 7 inches |
| Step in Height | 18 inches |
Power
Features |
All 4 Forward LSV Models |
Motor Controller |
375 Amp AC Motor Controller |
Batteries |
4kW Lithium |
Battery Charger |
650W HF Li-ION Shelf Charger |
Drivetrain |
Motor Shaft Direct Drive |
Gear Selection |
Dash Mounted FNR |
Rear Axle Ratio |
14.85:1 |
Performance
| All 4 Forward LSV Models | |
| Seating Capacity | 4 passengers |
| Curb Weight | 4kW: 1,103 lbs
7kW: 1,137 lbs |
| Vehicle Load Capacity | 850 lbs |
| Rear Trunk Weight Capacity | 50 lbs |
| Turning Radius | 144 inches |
| High Speed (Level Ground) | 25 mph (40kph) |
Steering & Suspension
| All Onward 4 Forward LSV Models | |
| Steering | SportDrive™ — Self-compensating double reduction helical rack & pinion |
| Suspension (Front & Rear) | Front: Independent wide track Double A-arm with hydraulic shocks
Rear: Rear leaf with drag bar and automotive-grade jounce bumpers |
| Brakes | 4 wheel hydraulic disc |
| Parking Brake | Electronic Park Brake System |
Body & Chassis
| All Onward LSV 4 Forward Models | |
| Frame | AlumiCore™ — Ladder-style aluminum box beam |
| Body & Finish | Automotive-grade paint and UV protected molding |
